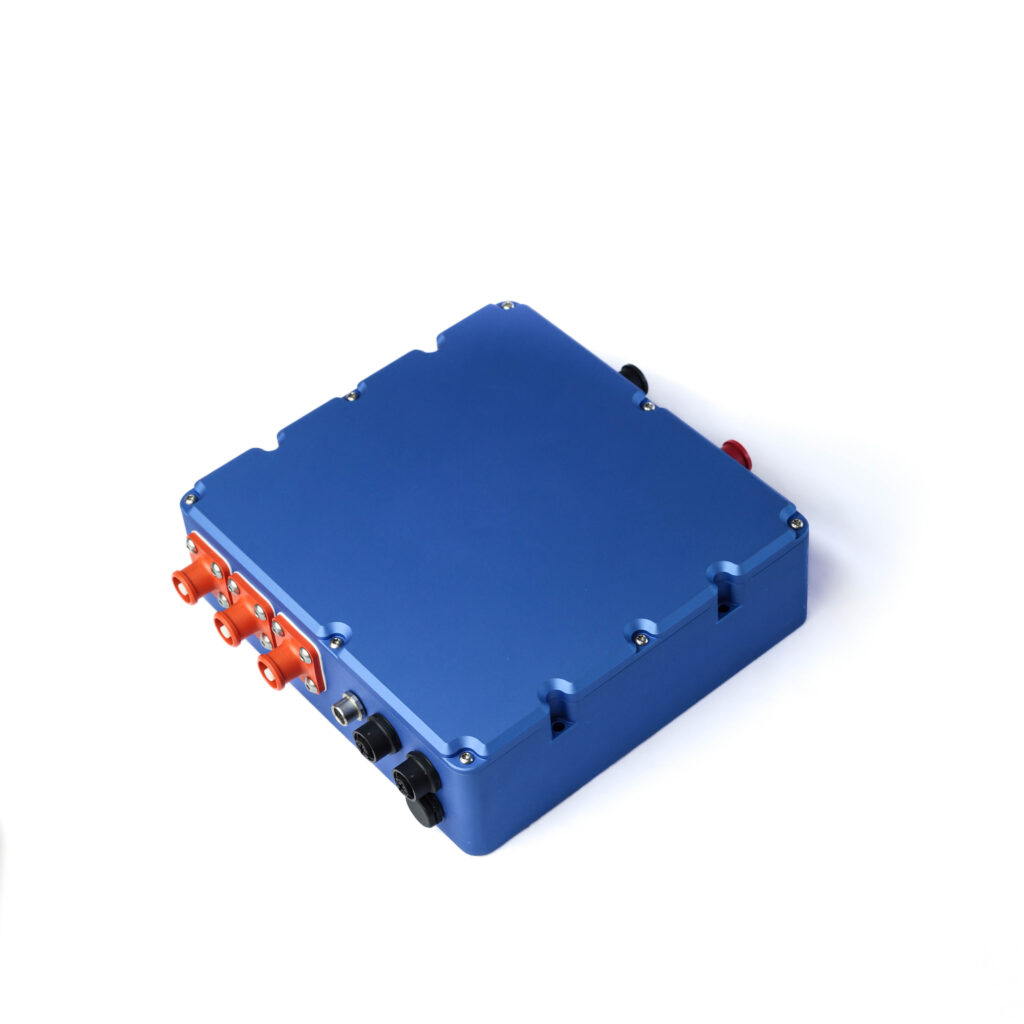

Miondrive 170-100S
High-efficiency motor control engineered for solar cars
Compact FOC motor controller with up to 170 VDC bus voltage, 100 Arms peak phase current and CAN connectivity.
170 VDC
Maximum DC bus voltage
100 Arms
Peak phase current
99.31%
Peak measured efficiency
30 kHz
Maximum switching frequency
Drivetrain Efficiency Optimization
Adjustable switching frequency enables optimization of the complete drivetrain, reducing the combined losses of the inverter and motor.
Advanced FOC Control
Sensorless and Hall-based FOC with field weakening and configurable switching frequency up to 30 kHz.
Vehicle Integration
Dual CAN connectivity with configurable CAN speed, 9–36 V auxiliary supply and integrated motor temperature sensing.
Protections
Independent hardware and software protection layers rapidly shut down the inverter during overcurrent, overvoltage and thermal events, helping prevent catastrophic power-stage failure.
Interested in the MionDrive 170-100S?
Contact Miontronics to discuss your application, motor specifications, system voltage and integration requirements.
Custom variants can be developed for specific applications, including firmware changes, connector configurations, enclosure modifications and mechanical integration requirements.
| Maximum DC bus voltage | 170 VDC |
| Peak phase current | 100 Arms |
| Continuous phase current | Validation in progress |
| Peak inverter efficiency | 99.31% measured |
| Motor control | Field Oriented Control (FOC) |
| Sensorless operation | Yes |
| Hall sensor input | Yes |
| Field weakening | Yes |
| Switching frequency | Configurable up to 30 kHz |
| Auxiliary supply | 9–36 VDC |
| CAN communication | Dual CAN connection |
| Motor temperature input | Yes |
| Protection | Hardware/software overcurrent, overvoltage, undervoltage, MOSFET temperature and motor temperature protection |
| Dimensions | 190 × 180 × 60 mm |
| Cooling | External heatsink or optional water-cooling plate |
| Environmental rating | IP54 |
| High-current connectors | Amphenol RADSOK |
| CAN connectors | 2 × M12 |
| Motor sensor connector | M8 — Hall sensors and motor temperature |
| Software platform | Custom motor-control firmware based on the VESC open-source platform |
| Manufacturing | Designed and manufactured in the Netherlands |
The MionDrive 170-100S uses modified open-source motor-control firmware based on the VESC project and is compatible with VESC® Tool for configuration and tuning. The firmware is distributed under the GNU General Public License v3.0 (GPLv3), with corresponding source code made available by Miontronics.
VESC® is a registered trademark of Benjamin Vedder. MionDrive 170-100S is an independent Miontronics product and is not endorsed by or affiliated with Benjamin Vedder or the VESC Project.
